Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Name: Single Cylinder Piston Pump BW160H 160LMin Flow 13MPa Pressure Mud Pump
Brand: RanCheng
Price: 2380 USD

Buy cheap Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump product

Brand Name : RanCheng

Model Number : BW160

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : USD2380

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : Standard shipping

Model : BW160

Flow rate : 160L/min

pressure : 1.3 mpa

Transmission power : 5.5KW

frequency of stroke : 147 times/min

Contact Now

Single Cylinder Piston Pump BW160H - 160L/Min Flow, 1.3MPa Pressure Mud Pump

Product Specifications

Attribute	Value
Model	BW160
Flow rate	160L/min
Pressure	1.3 MPa
Transmission power	5.5KW
Frequency of stroke	147 times/min

Product Overview

The BW160 mud pump is a single-cylinder piston pump equipped with a single-cylinder diesel engine, operating in first gear at a constant speed. With a flow rate of 160 liters per minute and a maximum pressure of 1.3 MPa, it is primarily used in various drilling projects.

Technical Parameters

Parameter	Value
Model No.	BW160
Cylinder diameter	95mm
Piston Stroke	90mm
Frequency of stroke	147 times/min
Flow rate	160 L/min
Pressure	1.3 MPa
Power input	5.5 kW
Diameter of suction pipe	50mm
Diameter of discharge pipe	40mm
Overall dimensions (L×W×H)	850×600×550mm
Weight	130kg

Key Features

Compact design with small volume and light weight
Simple operation and easy relocation
Capable of transporting mud with sand content less than 5% or other liquids with pH value of about 7-8

Applications

The BW160 mud pump is a portable unit primarily designed to match with small-diameter geological exploration and engineering exploration drilling rigs with drilling depth of less than 300m.

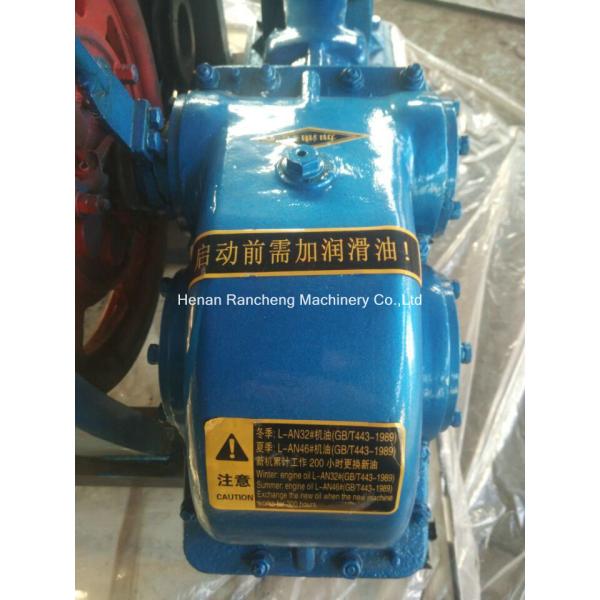

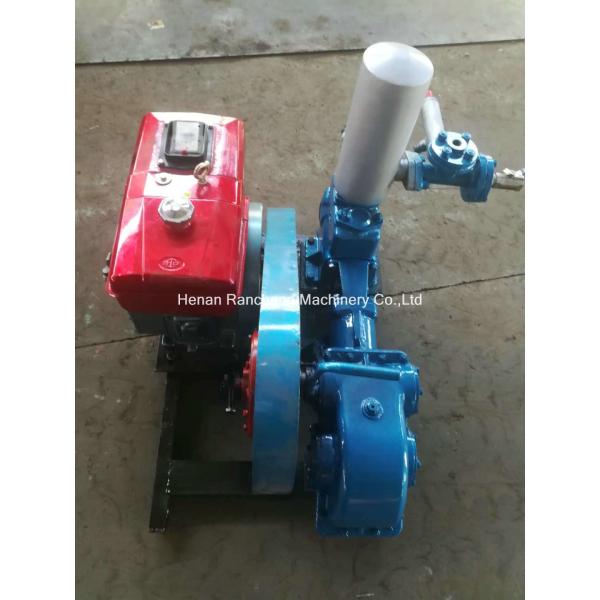

Product Images
